Dies M20 / 6g / DIN 382 / HSS / bright

  • Internal cooling: without
    Internal cooling: without
    Internal cooling: without
  • Standard: DIN 382
    Standard: DIN 382
    Standard: DIN 382
  • Surface: bright
    Surface: bright
    Surface: bright
  • Cutting direction: right-hand
    Cutting direction: right-hand
    Cutting direction: right-hand
  • Tool material: HSS
    Tool material: HSS
    Tool material: HSS
  • Tolerance field: 6g
    Tolerance field: 6g
    Tolerance field: 6g
SKU
139 20.000
EAN
4031093003155
To see prices, please log in. New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Dies M20 / 6g / DIN 382 / HSS / bright

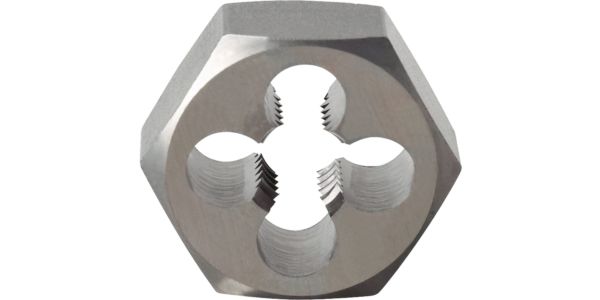

Die nuts for ISO metric threads M20 / 6g / DIN 382 / HSS / bright / Cutting direction: right-hand /
Application: P ≤ 1000 N/mm²
Internal cooling
without
Norm
DIN 382
Surface
bright
Discount group
103
Type
139
Cutting direction
right-hand
Material
HSS
Threads
M
Tolerance class thread
6g
Chamfer form
without chamfer
Chamfer lead length
1.75xP
Code no.
20.000
Weight
0.115
No of cutting edges
5
Total length
18.000
Wrench opening 1
41.000
Nominal dimension thread
M20
Pitch
2.500
External Ø
41.000
Pilot hole Ø work piece
19.790
Statistical goods number
82074030
Dimensions
mm
Material
search
information-circle All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests
    Die nuts for ISO metric threads / Catalogue-No.: 139
