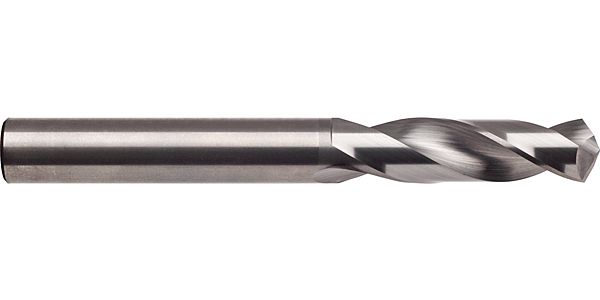

Twist drills Solid carbide / Ø 0.800 mm / h7 / DIN 6539 / bright / Type: N
-
Connection code machine side: straight shank -
Ø-Thinning: 3.000 -
Tolerance on Ø: h7 -
Internal cooling: without -
Standard: DIN 6539 -
Surface: bright -
Cutting direction: right-hand -
Type: N -
Point angle: 118 -
Tool material: Solid carbide
SKU
730 0.800
EAN
4031093237604
To see prices, please log in.
New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Item is not available
Note
Product added to cart.
Loading...
Twist drills Solid carbide / Ø 0.800 mm / h7 / DIN 6539 / bright / Type: N
Twist drills extra-short Solid carbide / Ø 0.800 mm h7 / DIN 6539 / Surface: bright / Cutting direction: right-hand / facet point grinding 118°
Execution: Web thinning ≥ Ø 2.060 mm • facet point grind • main cutting edge form straight
Application: structural and case hardened steels • free-cutting steels, heat-treatable steels • grey cast iron • bronze, brass • aluminium and Al alloys • magnesium and magnesium alloys • plastics and fiber reinforced plastics
Execution: Web thinning ≥ Ø 2.060 mm • facet point grind • main cutting edge form straight
Application: structural and case hardened steels • free-cutting steels, heat-treatable steels • grey cast iron • bronze, brass • aluminium and Al alloys • magnesium and magnesium alloys • plastics and fiber reinforced plastics
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
- Point grinding
- facet point grinding
- Connection code machine side
- straight shank
- Ø-Thinning
- 2.060
- Nominal Ø tolerance field
- h7
- Internal cooling
- without
- Norm
- DIN 6539
- Surface
- bright
- Discount group
- 102
- Type
- 730
- Cutting direction
- right-hand
- Type
- N
- Point angle
- 118
- Material
- Solid carbide
- Code no.
- 0.800
- Weight
- 0.001
- No of cutting edges
- 2
- Total length
- 24.000
- Groove length
- 5.000
- Usable length
- 4.000
- Shank Ø
- 0.800
- Shank length
- 19.000
- Nominal Ø mm
- 0.800
- Statistical goods number
- 82075050
Alert
Error when calculating the cutting values
Use case
Dimensions
mm
mm
mm
mm
%
mm
Material
All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests
