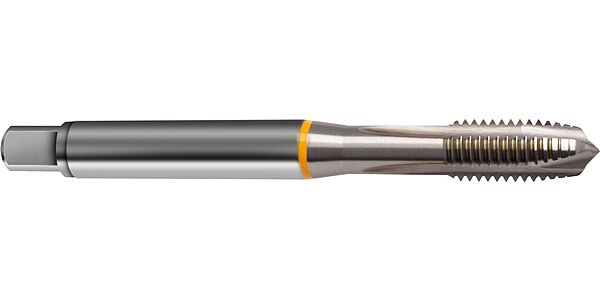

Taps M5 / ISO1/4H / DIN 371 / HSS-E / bright

  • Connection code machine side: straight shank
    Connection code machine side: straight shank
    Connection code machine side: straight shank
  • Internal cooling: without
    Internal cooling: without
    Internal cooling: without
  • Standard: DIN 371
    Standard: DIN 371
    Standard: DIN 371
  • Surface: bright
    Surface: bright
    Surface: bright
  • Cutting direction: right-hand
    Cutting direction: right-hand
    Cutting direction: right-hand
  • Type: N
    Type: N
    Type: N
  • Tool material: HSS-E
    Tool material: HSS-E
    Tool material: HSS-E
  • Form: B
    Form: B
    Form: B
  • Coloured ring: yellow ring
    Coloured ring: yellow ring
    Coloured ring: yellow ring
  • Tolerance field: ISO1/4H
    Tolerance field: ISO1/4H
    Tolerance field: ISO1/4H
  • Hole type: through hole
    Hole type: through hole
    Hole type: through hole
  • Groove: straight-fluted cutting edges
    Groove: straight-fluted cutting edges
    Groove: straight-fluted cutting edges
SKU
794 5.000
EAN
4031093249706
To see prices, please log in. New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Taps M5 / ISO1/4H / DIN 371 / HSS-E / bright
Machine taps for ISO metric threads  M5 / ISO1/4H / 3xD / DIN 371 / DIN 2184-1 / HSS-E / bright / Type: N / Form: B / through hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²
Connection code machine side
straight shank
Internal cooling
without
Norm
DIN 371
Surface
bright
Discount group
103
Type
794
Cutting direction
right-hand
Type
N
Material
HSS-E
Additional information
Internal threading
Form
B
Coloured ring
yellow ring
Threads
M
Tolerance class thread
ISO1/4H
Hole type
through hole
Groove
straight-fluted cutting edges
Chamfer lead length
3.5-5,5
Code no.
5.000
Weight
0.012
No of cutting edges
3
Total length
70.000
Thread length
14.000
Groove length
21.000
Usable length
25.000
Norm 2
DIN 2184-1
Wrench opening 1
4.900
Neck Ø
4.000
Core hole Ø
4.20
Shank Ø
6.000
Nominal dimension thread
M5
Pitch
0.800
External Ø
5.060
Reach length
50.000
Statistical goods number
82074010
Dimensions
mm
Material
search
information-circle All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests
    Machine taps for ISO metric threads / Catalogue-No.: 794
