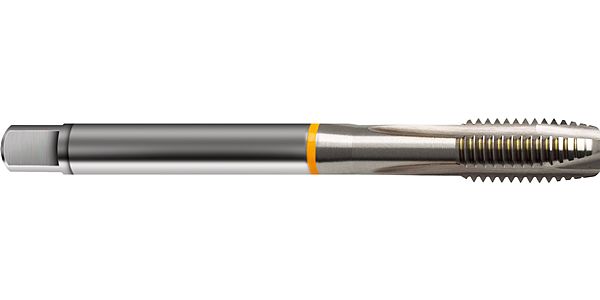

Taps M30 / ISO2/6H / DIN 376 / HSS-E / bright

  • Connection code machine side: straight shank
    Connection code machine side: straight shank
    Connection code machine side: straight shank
  • Internal cooling: without
    Internal cooling: without
    Internal cooling: without
  • Standard: DIN 376
    Standard: DIN 376
    Standard: DIN 376
  • Surface: bright
    Surface: bright
    Surface: bright
  • Cutting direction: right-hand
    Cutting direction: right-hand
    Cutting direction: right-hand
  • Type: N
    Type: N
    Type: N
  • Tool material: HSS-E
    Tool material: HSS-E
    Tool material: HSS-E
  • Form: B
    Form: B
    Form: B
  • Coloured ring: yellow ring
    Coloured ring: yellow ring
    Coloured ring: yellow ring
  • Tolerance field: ISO2/6H
    Tolerance field: ISO2/6H
    Tolerance field: ISO2/6H
  • Hole type: through hole
    Hole type: through hole
    Hole type: through hole
  • Groove: straight-fluted cutting edges
    Groove: straight-fluted cutting edges
    Groove: straight-fluted cutting edges
SKU
815 30.000
EAN
4031093252096
To see prices, please log in. New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Taps M30 / ISO2/6H / DIN 376 / HSS-E / bright
Machine taps for ISO metric threads  M30 / ISO2/6H / 3xD / DIN 376 / DIN 2184-1 / HSS-E / bright / Type: N / Form: B / through hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²
Connection code machine side
straight shank
Internal cooling
without
Norm
DIN 376
Surface
bright
Discount group
103
Type
815
Cutting direction
right-hand
Type
N
Material
HSS-E
Additional information
Internal threading
Form
B
Coloured ring
yellow ring
Threads
M
Tolerance class thread
ISO2/6H
Hole type
through hole
Groove
straight-fluted cutting edges
Chamfer lead length
3.5-5,5
Code no.
30.000
Weight
0.497
No of cutting edges
4
Total length
180.000
Thread length
40.000
Groove length
80.000
Usable length
85.000
Norm 2
DIN 2184-1
Wrench opening 1
18.000
Neck Ø
21.700
Core hole Ø
26.50
Shank Ø
22.000
Nominal dimension thread
M30
Pitch
3.500
External Ø
30.120
Reach length
93.000
Statistical goods number
82074010
Dimensions
mm
Material
search
information-circle All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests
    Machine taps for ISO metric threads / Catalogue-No.: 815
