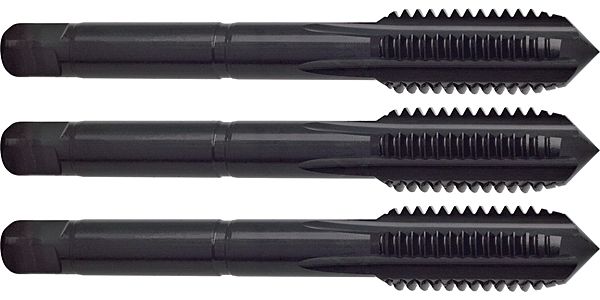

Hand taps, set M6 / ISO2/6H / DIN 352 / HSS / steam tempered
-
Connection code machine side: straight shank -
Internal cooling: without -
Standard: DIN 352 -
Surface: steam tempered -
Cutting direction: right-hand -
Type: H -
Tool material: HSS-E -
Tolerance field: ISO2/6H -
Hole type: through-, blind hole
SKU
857 6.000
EAN
4031093258029
To see prices, please log in.
New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Item is not available
Note
Product added to cart.
Loading...
Hand taps, set M6 / ISO2/6H / DIN 352 / HSS / steam tempered
Set Hand taps for ISO metric threads M6 / ISO2/6H / DIN 352 / DIN 2184-2 / HSS / steam tempered / Type: H / through-, blind hole / Cutting direction: right-hand /
Application: P ≤ 1200 N/mm²
Application: P ≤ 1200 N/mm²
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
- Connection code machine side
- straight shank
- Internal cooling
- without
- Norm
- DIN 352
- Surface
- steam tempered
- Discount group
- 118
- Type
- 857
- Cutting direction
- right-hand
- Type
- H
- Material
- HSS
- Additional information
- Set
- Threads
- M
- Tolerance class thread
- ISO2/6H
- Hole type
- through-, blind hole
- Code no.
- 6.000
- Weight
- 0.008
- Number parts per set
- 3.00
- No of cutting edges
- 3
- Total length
- 56.000
- Thread length
- 16.000
- Groove length
- 23.000
- Norm 2
- DIN 2184-2
- Wrench opening 1
- 4.900
- Neck Ø
- 4.700
- Core hole Ø
- 5.00
- Shank Ø
- 6.000
- Nominal dimension thread
- M6
- Pitch
- 1.000
- Statistical goods number
- 82074010
Alert
Error when calculating the cutting values
Use case
Dimensions
mm
mm
mm
mm
%
mm
Material
All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests
