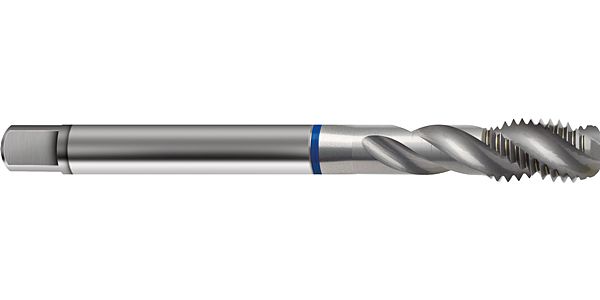

Taps G1/2 / DIN 5156 / HSS-E-PM / bright
-
Connection code machine side: straight shank -
Internal cooling: without -
Standard: DIN 5156 -
Surface: bright -
Cutting direction: right-hand -
Type: VA R40 -
Tool material: HSS-E-PM -
Form: C -
Coloured ring: blue ring -
Hole type: blind hole -
Groove: 40° right hand helix
SKU
939 20.955
EAN
4031093267274
To see prices, please log in.
New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Item is not available
Note
Product added to cart.
Loading...
Taps G1/2 / DIN 5156 / HSS-E-PM / bright
Machine taps f. BSP-threads G1/2 / 3xD / DIN 5156 / DIN 2184-1 / HSS-E-PM / bright / Type: VA R40 / Form: C / blind hole / Cutting direction: right-hand
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
- Connection code machine side
- straight shank
- Internal cooling
- without
- Norm
- DIN 5156
- Surface
- bright
- Discount group
- 103
- Type
- 939
- Cutting direction
- right-hand
- Type
- VA R40
- Material
- HSS-E-PM
- Additional information
- Internal threading
- Form
- C
- Coloured ring
- blue ring
- Threads
- BSP
- Hole type
- blind hole
- Groove
- 40° right hand helix
- Chamfer lead length
- 2-3
- Code no.
- 20.955
- Weight
- 0.180
- No of cutting edges
- 4
- Total length
- 125.000
- Thread length
- 18.000
- Groove length
- 40.000
- Usable length
- 44.000
- Norm 2
- DIN 2184-1
- Wrench opening 1
- 12.000
- Core hole Ø
- 19.00
- Shank Ø
- 16.000
- Nominal dimension thread
- G1/2
- External Ø
- 21.040
- Pitch thread/inch
- 14.000
- Reach length
- 51.000
- Statistical goods number
- 82074010
Alert
Error when calculating the cutting values
Use case
Dimensions
mm
mm
mm
mm
%
mm
Material
All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests
