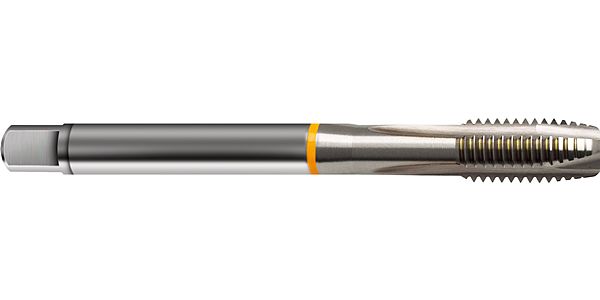

Taps G2 / DIN 5156 / HSS-E / bright
-
Connection code machine side: straight shank -
Internal cooling: without -
Standard: DIN 5156 -
Surface: bright -
Cutting direction: right-hand -
Type: N -
Tool material: HSS-E -
Form: B -
Coloured ring: yellow ring -
Hole type: through hole -
Groove: straight-fluted cutting edges
SKU
962 59.614
EAN
4031093269599
To see prices, please log in.
New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Item is not available
Note
Product added to cart.
Loading...
Taps G2 / DIN 5156 / HSS-E / bright
Machine taps f. BSP-threads G2 / 3xD / DIN 5156 / DIN 2184-1 / HSS-E / bright / Type: N / Form: B / through hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²
Application: P ≤ 800 N/mm²
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
- Connection code machine side
- straight shank
- Internal cooling
- without
- Norm
- DIN 5156
- Surface
- bright
- Discount group
- 103
- Type
- 962
- Cutting direction
- right-hand
- Type
- N
- Material
- HSS-E
- Additional information
- Internal threading
- Form
- B
- Coloured ring
- yellow ring
- Threads
- BSP
- Hole type
- through hole
- Groove
- straight-fluted cutting edges
- Chamfer lead length
- 3.5-5,5
- Code no.
- 59.614
- Weight
- 2.823
- No of cutting edges
- 8
- Total length
- 220.000
- Thread length
- 40.000
- Groove length
- 90.000
- Usable length
- 95.000
- Norm 2
- DIN 2184-1
- Wrench opening 1
- 35.000
- Neck Ø
- 44.600
- Core hole Ø
- 57.00
- Shank Ø
- 45.000
- Nominal dimension thread
- G2
- Pitch
- 2.309
- External Ø
- 59.730
- Pitch thread/inch
- 11.000
- Reach length
- 104.000
- Statistical goods number
- 82074010
Alert
Error when calculating the cutting values
Use case
Dimensions
mm
mm
mm
mm
%
mm
Material
All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests
