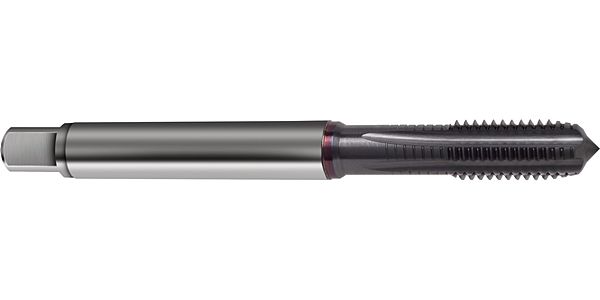

Taps M6 / 6HX / DIN 371 / HSS-E-PM / TiCN

  • Connection code machine side: straight shank
    Connection code machine side: straight shank
    Connection code machine side: straight shank
  • Internal cooling: without
    Internal cooling: without
    Internal cooling: without
  • Standard: DIN 371
    Standard: DIN 371
    Standard: DIN 371
  • Surface: TiCN
    Surface: TiCN
    Surface: TiCN
  • Cutting direction: right-hand
    Cutting direction: right-hand
    Cutting direction: right-hand
  • Type: H
    Type: H
    Type: H
  • Tool material: HSS-E-PM
    Tool material: HSS-E-PM
    Tool material: HSS-E-PM
  • Form: D
    Form: D
    Form: D
  • Tolerance field: 6HX
    Tolerance field: 6HX
    Tolerance field: 6HX
  • Hole type: through-, blind hole
    Hole type: through-, blind hole
    Hole type: through-, blind hole
  • Groove: straight-fluted cutting edges
    Groove: straight-fluted cutting edges
    Groove: straight-fluted cutting edges
  • (Variety): 55
    (Variety): 55
    (Variety): 55
SKU
1201 6.000
EAN
4031093775168
To see prices, please log in. New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Taps M6 / 6HX / DIN 371 / HSS-E-PM / TiCN
Machine taps for ISO metric threads  M6 / 6HX / 1.5xD / DIN 371 / DIN 2184-1 / HSS-E-PM / TiCN / Type: H / Form: D / through-, blind hole / Cutting direction: right-hand /
Execution:  /
Application: H = 45-55 HRC
Connection code machine side
straight shank
Internal cooling
without
Norm
DIN 371
Surface
TiCN
Discount group
103
Type
1201
Cutting direction
right-hand
Type
H
Material
HSS-E-PM
Additional information
Internal threading
Form
D
Threads
M
Tolerance class thread
6HX
Hole type
through-, blind hole
Groove
straight-fluted cutting edges
Chamfer lead length
3.5-5
(Variety)
55
Code no.
6.000
Weight
0.017
No of cutting edges
4
Total length
80.000
Thread length
16.000
Groove length
26.000
Usable length
30.000
Norm 2
DIN 2184-1
Wrench opening 1
4.900
Neck Ø
4.900
Core hole Ø
5.10
Shank Ø
6.000
Nominal dimension thread
M6
Pitch
1.000
External Ø
6.060
Reach length
59.000
Statistical goods number
82074010
Dimensions
mm
Material
search
information-circle All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests
    Machine taps for ISO metric threads / Catalogue-No.: 1201
