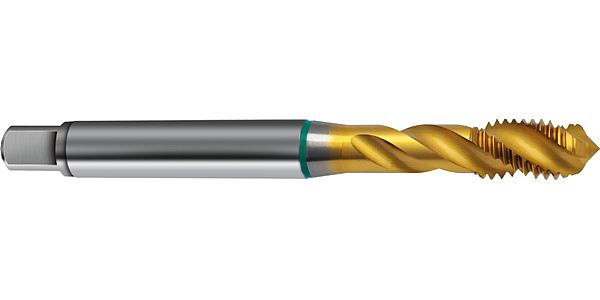

Taps M4 / ISO3/6G / DIN 371 / HSS-E / TiN

  • Connection code machine side: straight shank
    Connection code machine side: straight shank
    Connection code machine side: straight shank
  • Internal cooling: without
    Internal cooling: without
    Internal cooling: without
  • Standard: DIN 371
    Standard: DIN 371
    Standard: DIN 371
  • Surface: TiN
    Surface: TiN
    Surface: TiN
  • Cutting direction: right-hand
    Cutting direction: right-hand
    Cutting direction: right-hand
  • Type: N R40
    Type: N R40
    Type: N R40
  • Tool material: HSS-E
    Tool material: HSS-E
    Tool material: HSS-E
  • Identification (Article No.): ERWEITERT
    Identification (Article No.): ERWEITERT
    Identification (Article No.): ERWEITERT
  • Form: C
    Form: C
    Form: C
  • Coloured ring: green ring
    Coloured ring: green ring
    Coloured ring: green ring
  • Tolerance field: ISO3/6G
    Tolerance field: ISO3/6G
    Tolerance field: ISO3/6G
  • Hole type: blind hole
    Hole type: blind hole
    Hole type: blind hole
  • Groove: 40° right hand helix
    Groove: 40° right hand helix
    Groove: 40° right hand helix
SKU
2995 4.000
EAN
4031093626859
To see prices, please log in. New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Taps M4 / ISO3/6G / DIN 371 / HSS-E / TiN
Machine taps for ISO metric threads  M4 / ISO3/6G / 3xD / DIN 371 / DIN 2184-1 / HSS-E / TiN / Type: N R40 / Form: C / blind hole / Cutting direction: right-hand /
Application: P ≤ 1000 N/mm²
Connection code machine side
straight shank
Internal cooling
without
Norm
DIN 371
Surface
TiN
Discount group
103
Type
2995
Cutting direction
right-hand
Type
N R40
Material
HSS-E
Identification (Article No.)
ERWEITERT
Additional information
Internal threading
Form
C
Coloured ring
green ring
Threads
M
Tolerance class thread
ISO3/6G
Hole type
blind hole
Groove
40° right hand helix
Chamfer lead length
2-3
Code no.
4.000
Weight
0.006
No of cutting edges
3
Total length
63.000
Thread length
7.500
Groove length
17.000
Usable length
21.000
Norm 2
DIN 2184-1
Wrench opening 1
3.400
Neck Ø
3.000
Core hole Ø
3.30
Shank Ø
4.500
Nominal dimension thread
M4
Pitch
0.700
External Ø
4.050
Reach length
43.000
Statistical goods number
82074010
Dimensions
mm
Material
search
information-circle All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests
    Machine taps for ISO metric threads / Catalogue-No.: 2995
