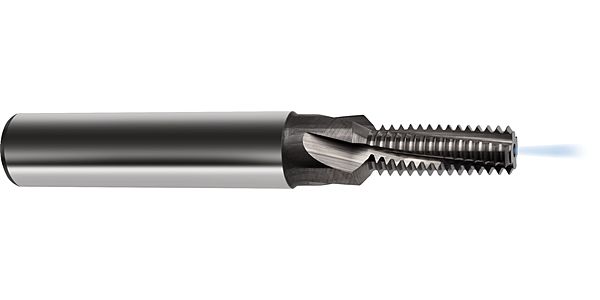

Thread milling cutters with chamfer M6 x 0,5 / Company std. / Solid carbide
-
Connection code machine side: DIN 6535-HA -
Internal cooling: with -
Standard: Company std. -
Surface: bright -
Cutting direction: right-hand -
Type: TMC SP -
Tool material: Solid carbide -
Hole type: through-, blind hole
SKU
3513 6.003
EAN
4031093623186
To see prices, please log in.
New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Item is not available
Note
Product added to cart.
Loading...
Thread milling cutters with chamfer M6 x 0,5 / Company std. / Solid carbide
Drill thread milling cutters for ISO metric fine threads M6 x 0,5 / 2xD / Company std. / Solid carbide / bright / Type: TMC SP / through-, blind hole / Cutting direction: right-hand /
Execution: with chamfer
Execution: with chamfer
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
- Connection code machine side
- DIN 6535-HA
- Internal cooling
- with
- Norm
- Company std.
- Surface
- bright
- Discount group
- 108
- Type
- 3513
- Cutting direction
- right-hand
- Type
- TMC SP
- Material
- Solid carbide
- Additional information
- Internal threading
- Threads
- MF
- Hole type
- through-, blind hole
- Code no.
- 6.003
- Weight
- 0.037
- No of cutting edges
- 3
- Total length
- 62.000
- Thread length
- 12.800
- Groove length
- 18.000
- Neck Ø
- 6.600
- Core hole Ø
- 5.50
- Shank Ø
- 8.000
- Nominal dimension thread
- M6 x 0,5
- Pitch
- 0.500
- External Ø
- 4.800
- Shank length
- 36.000
- Reach length
- 26.000
- Statistical goods number
- 82074010
- Radiuskompensation
- 2.370
Alert
Error when calculating the cutting values
Use case
Dimensions
mm
mm
mm
mm
%
mm
Material
All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests
