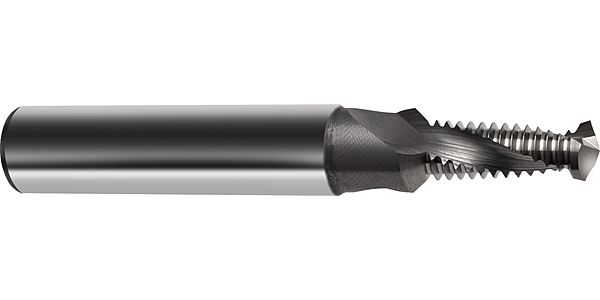

Drill thread milling cutters 9/16 - 18 / Company std. / Solid carbide / bright
-
Connection code machine side: DIN 6535-HA -
Internal cooling: without -
Standard: Company std. -
Surface: bright -
Cutting direction: right-hand -
Type: DTMC SP -
Point angle: 140 -
Tool material: Solid carbide -
Hole type: through-, blind hole
SKU
4140 14.288
EAN
4049844069930
To see prices, please log in.
New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Item is not available
Note
Product added to cart.
Loading...
Drill thread milling cutters 9/16 - 18 / Company std. / Solid carbide / bright
Drill thread milling cutters for UNF-threads 9/16 - 18 / 2xD / Company std. / Solid carbide / bright / Type: DTMC SP / through-, blind hole / Cutting direction: right-hand
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
- Connection code machine side
- DIN 6535-HA
- Internal cooling
- without
- Norm
- Company std.
- Surface
- bright
- Discount group
- 108
- Type
- 4140
- Cutting direction
- right-hand
- Type
- DTMC SP
- Point angle
- 140
- Material
- Solid carbide
- Additional information
- Internal threading
- Threads
- UNF
- Hole type
- through-, blind hole
- Code no.
- 14.288
- Weight
- 0.223
- No of cutting edges
- 2
- Total length
- 102.000
- Thread length
- 26.800
- Groove length
- 42.000
- Usable length
- 30.600
- Neck Ø
- 15.500
- Core hole Ø
- 12.90
- Shank Ø
- 16.000
- Nominal dimension thread
- 9/16 - 18
- Pitch
- 1.411
- External Ø
- 11.600
- Shank length
- 48.000
- Point grinding
- facet point grinding
- Pitch thread/inch
- 18.000
- Step 1 length
- 1.500
- Reach length
- 54.000
- Smallest Ø
- 12.900
- Drill part length
- 1.500
- Statistical goods number
- 82074010
- Radiuskompensation
- 5.740
Alert
Error when calculating the cutting values
Use case
Dimensions
mm
mm
mm
mm
%
mm
Material
All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests
