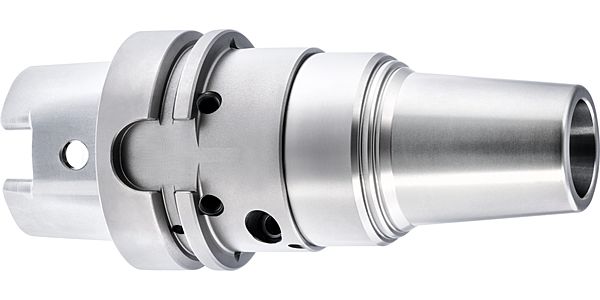

Precision clamping chucks / HSK-A 63 /  Lg=92.000 mm / Company std.

  • Connection code machine side: HSK-A
    Connection code machine side: HSK-A
    Connection code machine side: HSK-A
  • Internal cooling: with
    Internal cooling: with
    Internal cooling: with
  • Standard: Company std.
    Standard: Company std.
    Standard: Company std.
SKU
4300 20.063
EAN
4049844008489
To see prices, please log in. New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Precision clamping chucks / HSK-A 63 /  Lg=92.000 mm / Company std.
Precision clamping chucks / HSK-A 63 / # 4300 / Company std. / Execution: HSK-A according to ISO 12164-1 / DIN 69893-1 • balancing quality: G 2.5 / 20,000 rpm or U < 1.2 gmm • incl. balancing thread 6xM6 • axial length adjustment • for tool shanks d1 h6 • for heavy-duty machining as well as HSC and HPC • highest clamping force and stability thanks to mech. tension gearing • actuation torque for clamping force introduction
max. 10 Nm • suitable for internal cooling up to 80 bar
Connection code machine side
HSK-A
Internal cooling
with
Norm
Company std.
Discount group
114
Type
4300
Code no.
20.063
Range
3.0-20.0
Weight
0.540
External Ø
63.000
Shank length
32.000
Holder, machine side
HSK-A 63
Size
20
Reach length
92.000
ISO designation
- -
Width
26.000
Wrench opening 2
4.000
Setting range length
10.000
Offset Ø
53.000
Offset Ø 2
40.000
Intersection Ø
40.000
Offset Ø 2 length
20.000
Statistical goods number
84661038
    Precision clamping chucks / Catalogue-No.: 4300
