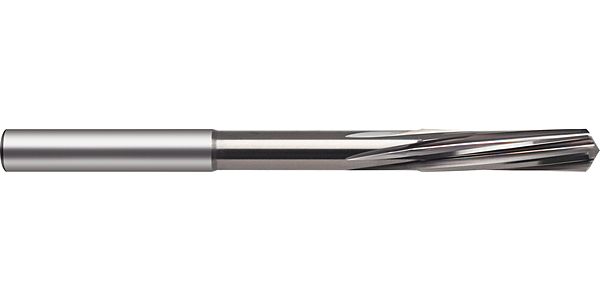

NC machine reamers / Ø 1.480 mm / +0.004/+0.005 / Company std. / Solid carbide

  • Connection code machine side: DIN 6535-HA
    Connection code machine side: DIN 6535-HA
    Connection code machine side: DIN 6535-HA
  • Tolerance on Ø: +0.004/+0.005
    Tolerance on Ø: +0.004/+0.005
    Tolerance on Ø: +0.004/+0.005
  • Internal cooling: without
    Internal cooling: without
    Internal cooling: without
  • Standard: Company std.
    Standard: Company std.
    Standard: Company std.
  • Surface: bright
    Surface: bright
    Surface: bright
  • Cutting direction: right-hand
    Cutting direction: right-hand
    Cutting direction: right-hand
  • Tool material: Solid carbide
    Tool material: Solid carbide
    Tool material: Solid carbide
  • Form: B
    Form: B
    Form: B
  • Hole type: through-, blind hole
    Hole type: through-, blind hole
    Hole type: through-, blind hole
  • Groove: left fluted
    Groove: left fluted
    Groove: left fluted
  • (Variety): 48
    (Variety): 48
    (Variety): 48
  • Spacing: EU
    Spacing: EU
    Spacing: EU
SKU
5527 1.480
EAN
4031093776141
To see prices, please log in. New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
NC machine reamers / Ø 1.480 mm / +0.004/+0.005 / Company std. / Solid carbide
NC machine reamers / Ø 1.480 mm / Tolerance zone: +0.004/+0.005 / Company std. / Solid carbide / bright / Form: B / Cutting direction: right-hand /
Execution: > Ø 3.75 mm with extremely unequal flute spacing • ≤ Ø 5.50 mm: 0.000/+0.004 • > Ø 5.50 mm: 0.000/+0.005
Connection code machine side
DIN 6535-HA
Tolerance on Ø
+0.004/+0.005
Internal cooling
without
Norm
Company std.
Surface
bright
Discount group
154
Type
5527
Cutting direction
right-hand
Material
Solid carbide
Form
B
Hole type
through-, blind hole
Groove
left fluted
(Variety)
48
Spacing
EU
Code no.
1.480
Weight
0.008
No of cutting edges
3
Total length
50.000
Groove length
15.000
Usable length
22.000
Neck Ø
1.380
Shank Ø
4.000
Nominal Ø mm
1.480
Cutting edge length
9.000
Reach length
22.000
Smallest Ø
1.480
Statistical goods number
82076030
Dimensions
mm
Material
search
information-circle All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests
    NC machine reamers / Catalogue-No.: 5527
