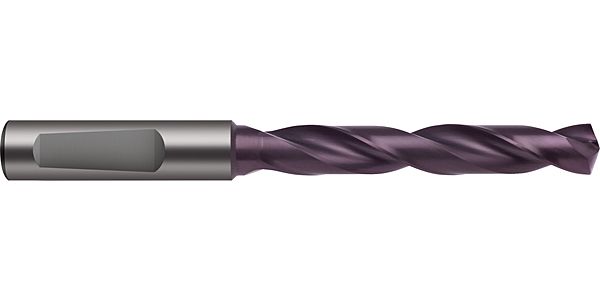

Ratio drills Solid carbide / Ø 8.700 mm / m7 / 5xD / DIN 6537L / Type: RT 100 U

  • Connection code machine side: DIN 6535-HE
    Connection code machine side: DIN 6535-HE
    Connection code machine side: DIN 6535-HE
  • Ø-Thinning: 3.000
    Ø-Thinning: 3.000
    Ø-Thinning: 3.000
  • Tolerance on Ø: m7
    Tolerance on Ø: m7
    Tolerance on Ø: m7
  • Internal cooling: without
    Internal cooling: without
    Internal cooling: without
  • Standard: DIN 6537L
    Standard: DIN 6537L
    Standard: DIN 6537L
  • Surface: nanoFIRE
    Surface: nanoFIRE
    Surface: nanoFIRE
  • Cutting direction: right-hand
    Cutting direction: right-hand
    Cutting direction: right-hand
  • Type: RT 100 U
    Type: RT 100 U
    Type: RT 100 U
  • Point angle: 140
    Point angle: 140
    Point angle: 140
  • Tool material: Solid carbide
    Tool material: Solid carbide
    Tool material: Solid carbide
SKU
5615 8.700
EAN
4031093793131
To see prices, please log in. New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Ratio drills Solid carbide / Ø 8.700 mm / m7 / 5xD / DIN 6537L / Type: RT 100 U
Ratio drills without coolant ducts Solid carbide / Ø 8.700 mm m7 / 5xD / DIN 6537L / Surface: nanoFIRE / Cutting direction: right-hand / facet point grinding 140°
Execution: Web thinning ≥ Ø 3.000 mm • facet point grind • main cutting edge form straight • optimised cutting edge geometry
 Application: structural and case hardened steels • free-cutting steels, heat-treatable steels • steels (alloyed/unalloyed) up to 1200 N/mm² • cast materials • bronze, brass • high-alloyed AlSi alloys
Point grinding
facet point grinding
Connection code machine side
DIN 6535-HE
Ø-Thinning
3.000
Nominal Ø tolerance field
m7
Internal cooling
without
Norm
DIN 6537L
Surface
nanoFIRE
Discount group
155
Type
5615
Cutting direction
right-hand
Type
RT 100 U
Point angle
140
Material
Solid carbide
Code no.
8.700
Weight
0.075
No of cutting edges
2
Total length
103.000
Groove length
61.000
Usable length
50.000
Shank Ø
10.000
Shank length
40.000
Nominal Ø mm
8.700
Clamping surface thickness
8.500
Statistical goods number
82075050
Dimensions
mm
Material
search
information-circle All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests
    Ratio drills without coolant ducts / Catalogue-No.: 5615
