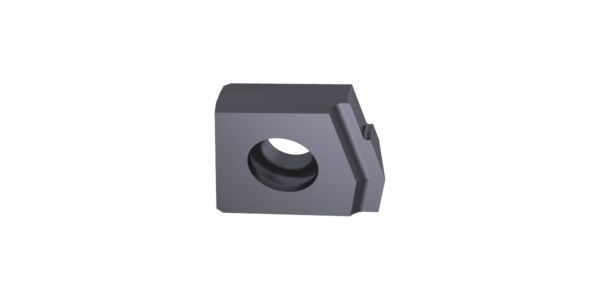

Interchangeable inserts / Ø 12.800 mm / Company std. / Solid carbide / FIRE

  • Standard: Company std.
    Standard: Company std.
    Standard: Company std.
  • Surface: FIRE
    Surface: FIRE
    Surface: FIRE
  • Cutting direction: right-hand
    Cutting direction: right-hand
    Cutting direction: right-hand
  • Type: EB 800
    Type: EB 800
    Type: EB 800
  • Tool material: Solid carbide
    Tool material: Solid carbide
    Tool material: Solid carbide
SKU
5704 12.800
EAN
4049844286825
To see prices, please log in. New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Interchangeable inserts / Ø 12.800 mm / Company std. / Solid carbide / FIRE
Inserts for single-fluted gun drills EB 800 / Ø 12.800 mm / Company std. / Solid carbide / FIRE / Type: EB 800 / Cutting direction: right-hand /
Execution: interchangeable insert with 1 cutting edge • observe tightening torques • order torque wrench set art. no. 4966 separately
Norm
Company std.
Surface
FIRE
Discount group
123
Type
5704
Cutting direction
right-hand
Type
EB 800
Material
Solid carbide
Code no.
12.800
Range
12,500-12,999
Weight
0.013
No of cutting edges
1
Total length
10.000
Nominal Ø mm
12.800
Tip length
1.500
Thickness
2.800
Statistical goods number
82090020
Dimensions
mm
Material
search
information-circle All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests
    Inserts for single-fluted gun drills EB 800 / Catalogue-No.: 5704
