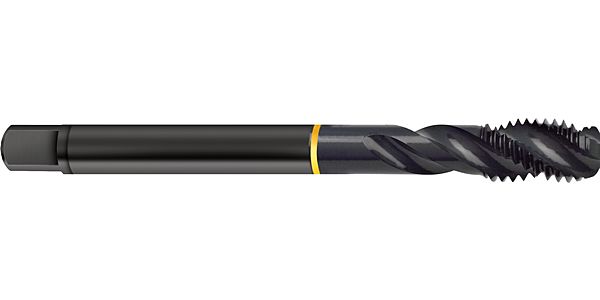

Taps G1/8 / DIN 5156 / HSS-E / steam tempered
-
Connection code machine side: straight shank -
Internal cooling: without -
Standard: DIN 5156 -
Surface: steam tempered -
Cutting direction: right-hand -
Type: N R40 -
Tool material: HSS-E -
Form: C -
Coloured ring: gold ring -
Hole type: blind hole -
Groove: 40° right hand helix
SKU
5732 9.728
EAN
4049844111554
To see prices, please log in.
New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Item is not available
Note
Product added to cart.
Loading...
Taps G1/8 / DIN 5156 / HSS-E / steam tempered
Machine taps f. BSP-threads G1/8 / DIN 5156 / DIN 2184-1 / HSS-E / steam tempered / Type: N R40 / Form: C / blind hole / Cutting direction: right-hand
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
- Connection code machine side
- straight shank
- Internal cooling
- without
- Norm
- DIN 5156
- Surface
- steam tempered
- Discount group
- 203
- Type
- 5732
- Cutting direction
- right-hand
- Type
- N R40
- Material
- HSS-E
- Additional information
- Internal threading
- Form
- C
- Coloured ring
- gold ring
- Threads
- BSP
- Hole type
- blind hole
- Groove
- 40° right hand helix
- Chamfer lead length
- 2-3
- Code no.
- 9.728
- Weight
- 0.030
- No of cutting edges
- 3
- Total length
- 90.000
- Thread length
- 11.000
- Groove length
- 31.000
- Usable length
- 35.000
- Norm 2
- DIN 2184-1
- Wrench opening 1
- 5.500
- Core hole Ø
- 8.80
- Shank Ø
- 7.000
- Nominal dimension thread
- G1/8
- Pitch
- 0.907
- External Ø
- 9.800
- Pitch thread/inch
- 28.000
- Reach length
- 68.000
- Statistical goods number
- 82074010
Alert
Error when calculating the cutting values
Use case
Dimensions
mm
mm
mm
mm
%
mm
Material
All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests
