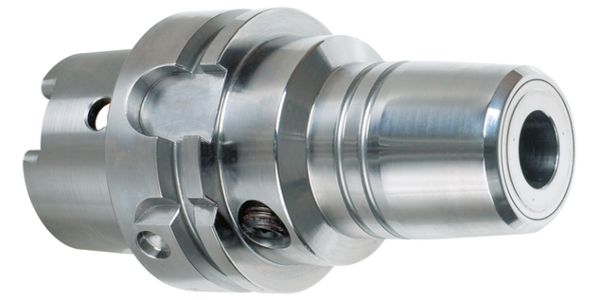

Hydraulic chucks

HSK-A according to ISO 12164-1 / DIN 69893-1 • dimensions according to DIN 69882-7 • balancing quality: G 2.5 / 25,000 rpm
or rev. < 1 gmm • for tool shanks d1 h6 • axial length adjustment • concentricity < 3 µm
l1 from 120 mm: max. 4 µm,
l1 from 150/160 mm: max. 5 µm,
l1 from 200 mm: max. 7 µm

Connection code machine side: HSK-A
Internal cooling: with
Standard: DIN 69882-7
Surface: bright

SKU

4299

ISO code

P	Steel, high-alloyed steel
M	Stainless steel
K	Grey cast iron, spher, graphite/mall. cast iron
N	Aluminium and other non-ferrous metals
S	Special, super and titanium alloys
H	Hardened steel and chilled cast iron

On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
