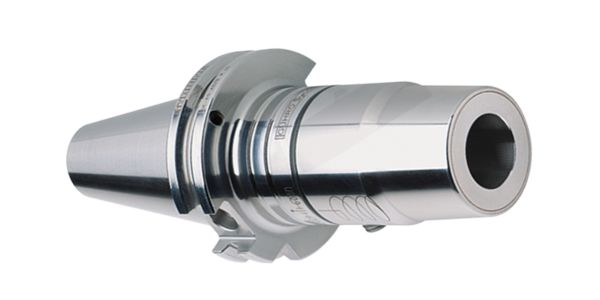

Hydraulic chucks

balancing quality: G 6.3 / 15,000 rpm
coolant pressure up to max. 80 bar
compensates synchronisation errors
convenient hydraulic clamping using reduction bushes with active drive

Connection code machine side: CAT ASME B5.50
Internal cooling: with
Standard: Company std.
Surface: bright
Identification (Article No.): New

SKU

4526

ISO code

P	Steel, high-alloyed steel
M	Stainless steel
K	Grey cast iron, spher, graphite/mall. cast iron
N	Aluminium and other non-ferrous metals
S	Special, super and titanium alloys
H	Hardened steel and chilled cast iron

On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
