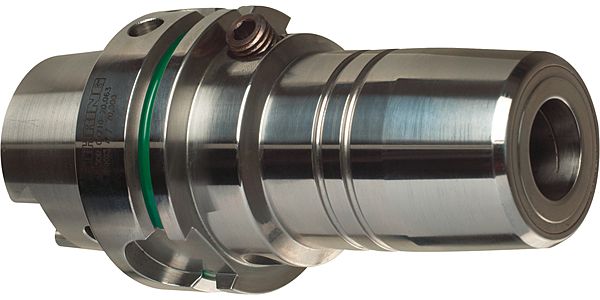

Hydraulic chucks for the automatic tool change cycle

HSK-A according to ISO 12164-1 / DIN 69893-1 • balancing quality: G 2.5 / 25,000 rpm
or rev. < 1 gmm • for tool shanks d1 h6 • axial length adjustment • for MQL 2-channel systems, to company standard • cross-section A (mm²) ratio 4:1, see info page

Connection code machine side: HSK-A
Internal cooling: with
Standard: Company std.
Surface: bright
Product logo: MQL2

SKU

4612

ISO code

P	Steel, high-alloyed steel
M	Stainless steel
K	Grey cast iron, spher, graphite/mall. cast iron
N	Aluminium and other non-ferrous metals
S	Special, super and titanium alloys
H	Hardened steel and chilled cast iron

On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
