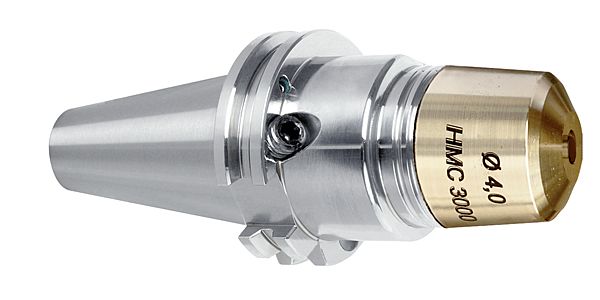

Hydraulic chucks

ISO taper to DIN ISO 7388-1 form AD/AF • balancing quality: G 2.5 / 25,000 rpm
or rev. < 1 gmm • perfect concentricity: < 3 μm bei 10xd1 • high clamping force • quick, easy handling and precise length adjustment only possible from the front • IC and Gührojet peripheral cooling ensure optimal chip removal and tool lubrication • for tool shanks d1 h6 • for small clamping diameters

Connection code machine side: ISO taper
Standard: Company std.
Surface: bright
Type: HMC 3000
Product logo: GUEJET

SKU

4619

ISO code

P	Steel, high-alloyed steel
M	Stainless steel
K	Grey cast iron, spher, graphite/mall. cast iron
N	Aluminium and other non-ferrous metals
S	Special, super and titanium alloys
H	Hardened steel and chilled cast iron

On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
