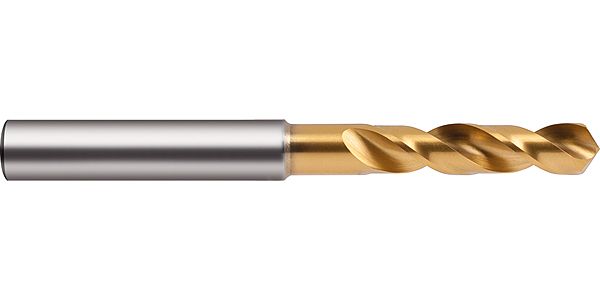

Twist drills with reinforced straight shank

Web thinning ≥ Ø 2.000 • facet point grind • Co-alloyed high speed steel • low feed force required • low torque required • increased wear resistance • for universal application

Connection code machine side: DIN 6535-HA
Cutting depth: ~3xD
Ø-Thinning: 3.000
Tolerance on Ø: h8
Internal cooling: without
Standard: Company std.
Surface: TiN
Cutting direction: right-hand
Type: GU 500
Point angle: 118
Tool material: HSCO

SKU

512

ISO code

P	Steel, high-alloyed steel
M	Stainless steel
K	Grey cast iron, spher, graphite/mall. cast iron
N	Aluminium and other non-ferrous metals
S	Special, super and titanium alloys
H	Hardened steel and chilled cast iron

On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
