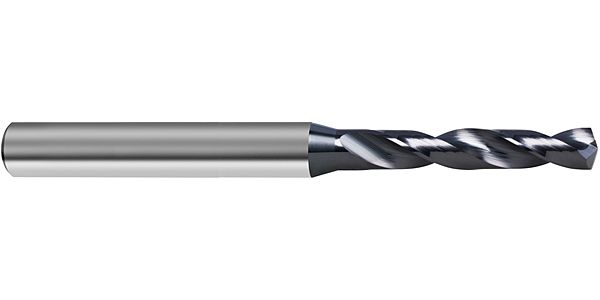

ExclusiveLine micro-precision drills without coolant ducts

facet point grind • main cutting edge form straight • ground cutting edge preparation

Connection code machine side: straight shank
Cutting depth: 4xD
Tolerance on Ø: m7
Internal cooling: without
Standard: Company std.
Surface: TiAlN-SuperA
Cutting direction: right-hand
Type: N
Point angle: 140
Tool material: Solid carbide
Identification (Article No.): New

SKU

6161

ISO code

P	Steel, high-alloyed steel
M	Stainless steel
K	Grey cast iron, spher, graphite/mall. cast iron
N	Aluminium and other non-ferrous metals
S	Special, super and titanium alloys
H	Hardened steel and chilled cast iron

On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
