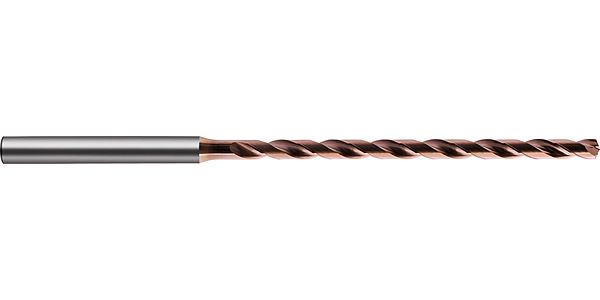

ExclusiveLine micro-precision drills with coolant ducts

Web thinning ≥ Ø 1.000 • facet point grind • main cutting edge is slightly concave • optimised cutting edge geometry

Connection code machine side: straight shank
Cutting depth: 15xD
Ø-Thinning: 3.000
Tolerance on Ø: h7
Internal cooling: with
Standard: Company std.
Surface: Perrox
Cutting direction: right-hand
Type: INOX PRO
Point angle: 135
Tool material: Solid carbide

SKU

6491

ISO code

P	Steel, high-alloyed steel
M	Stainless steel
K	Grey cast iron, spher, graphite/mall. cast iron
N	Aluminium and other non-ferrous metals
S	Special, super and titanium alloys
H	Hardened steel and chilled cast iron

On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
