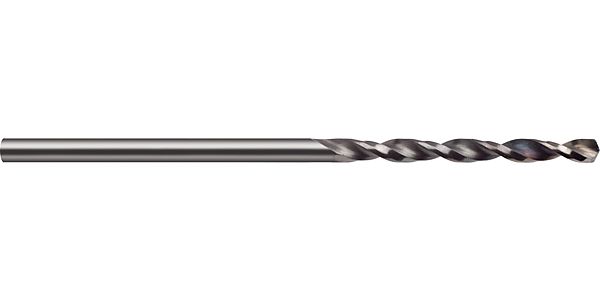

Twist drills long

facet point grind • main cutting edge form straight

Connection code machine side: straight shank
Cutting depth: ~10xD
Tolerance on Ø: h7
Internal cooling: without
Standard: Company std.
Surface: bright
Cutting direction: right-hand
Type: N
Point angle: 130
Tool material: Solid carbide

SKU

706

ISO code

P	Steel, high-alloyed steel
M	Stainless steel
K	Grey cast iron, spher, graphite/mall. cast iron
N	Aluminium and other non-ferrous metals
S	Special, super and titanium alloys
H	Hardened steel and chilled cast iron

On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability

glass fibres reinforced plastics • duroplastics that cause wear on lands and cutting edges
